Building the Liver Vasculature

case2
m3
m2
buyr3
item1

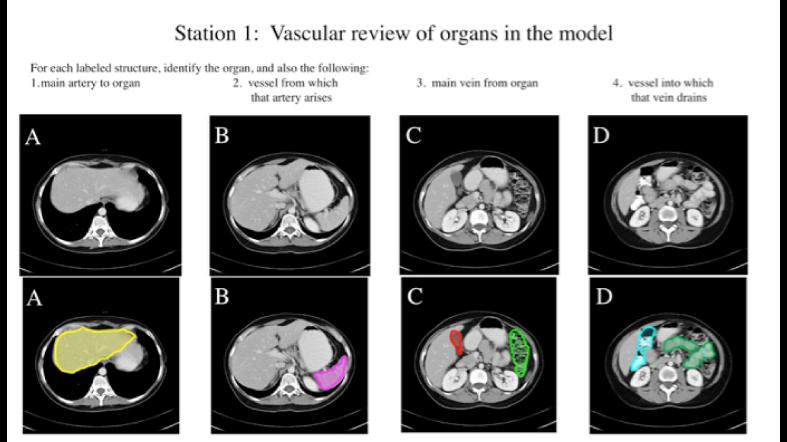

A-yellow=LIVER

1-=proper hepatic a, 2=common hepatic a, celiac a, 3=hepatic veins, 4=IVC

B-purple=SPLEEN

1=splenic a, 2=celiac a, 3=splenic v, 4=portal vein

C-red=GALLBLADDER

1=cystic a, 2=R hepatic a, 3=cystic v, 4=portal v

green=DESC COLON

1=L colic, 2=IMA, 3=IMV, 4=portal vein

D-blue=ASC COLON

1=R colic, 2=SMA, 3=SMV, 4=portal v

green=JEJUNUM

1=jejunal arteries, 2=SMA, 3=jejunal veins, 4=SVM, portal
